Lignin is the second-most abundant biopolymer on Earth and the single largest unrealised value pool inside every Napier stalk and agri-residue bale. A lignin-first biorefinery turns what is burnt today into carbon fibre precursors, resins, dispersants, bio-bitumen, vanillin and advanced specialty chemicals.
Lignin accounts for 18–28% of lignocellulosic biomass. Globally, ~50 million tonnes are produced as a pulp-and-paper by-product each year, yet >95% is still burnt for low-grade heat. The materials opportunity is multi-tens-of-billions of dollars.
Hybrid Bajra-Napier delivers 200–400 t/ha/yr of biomass with 18–22% lignin — making a 25 km biorefinery cluster a structurally large, renewable lignin source without competing with food.
Lignin-first fractionation (organosolv, mild alkaline, deep eutectic solvents) preserves the aromatic backbone — enabling downstream conversion to BTX, phenols, vanillin, and engineering polymers.
Lignin-derived carbon fibre can cut precursor cost by 40–50% vs PAN. Target markets: automotive lightweighting, wind blades, construction reinforcement, EV battery enclosures.
Direct drop-in for phenol-formaldehyde resins, plywood adhesives, concrete superplasticisers, oilfield dispersants and agro-formulation carriers — replacing fossil phenol.
Lignin-modified bitumen extends pavement life, reduces fossil bitumen demand, and creates a credible offtake for >100 kT/yr of refinery lignin per cluster.
Vanillin, guaiacol, syringol, BTX aromatics — fermentation and catalytic routes convert lignin monomers into food, flavour, fragrance, and pharma intermediates.
Adding a lignin train to a 100 TPD CBG biorefinery can lift gate value by 25–40% — the difference between a survival-economics project and an investable circular platform.
Conventional biorefineries treat lignin as a residue and burn it for low-grade heat — destroying 30%+ of the biomass value pool. Agropolis inverts the order: we design the refinery around lignin first and let cellulose and hemicellulose follow. Mild, sulfur-free fractionation (organosolv, alkaline, deep eutectic solvents) preserves the aromatic backbone — the difference between a fuel-grade by-product and a high-value materials platform.
Mild fractionation keeps lignin's aromatic β-O-4 linkages intact — the prerequisite for carbon fibre, resins and BTX, not just boiler fuel.
Separate OSL (organosolv), LS, KL and BRL streams to FCO/spec — each grade routed to its highest-revenue market (see chart below).
Specialties at $2,500–3,000/t before commodity biofuel at <$100/t. Lignin-first inverts the economics of every CBG cluster.

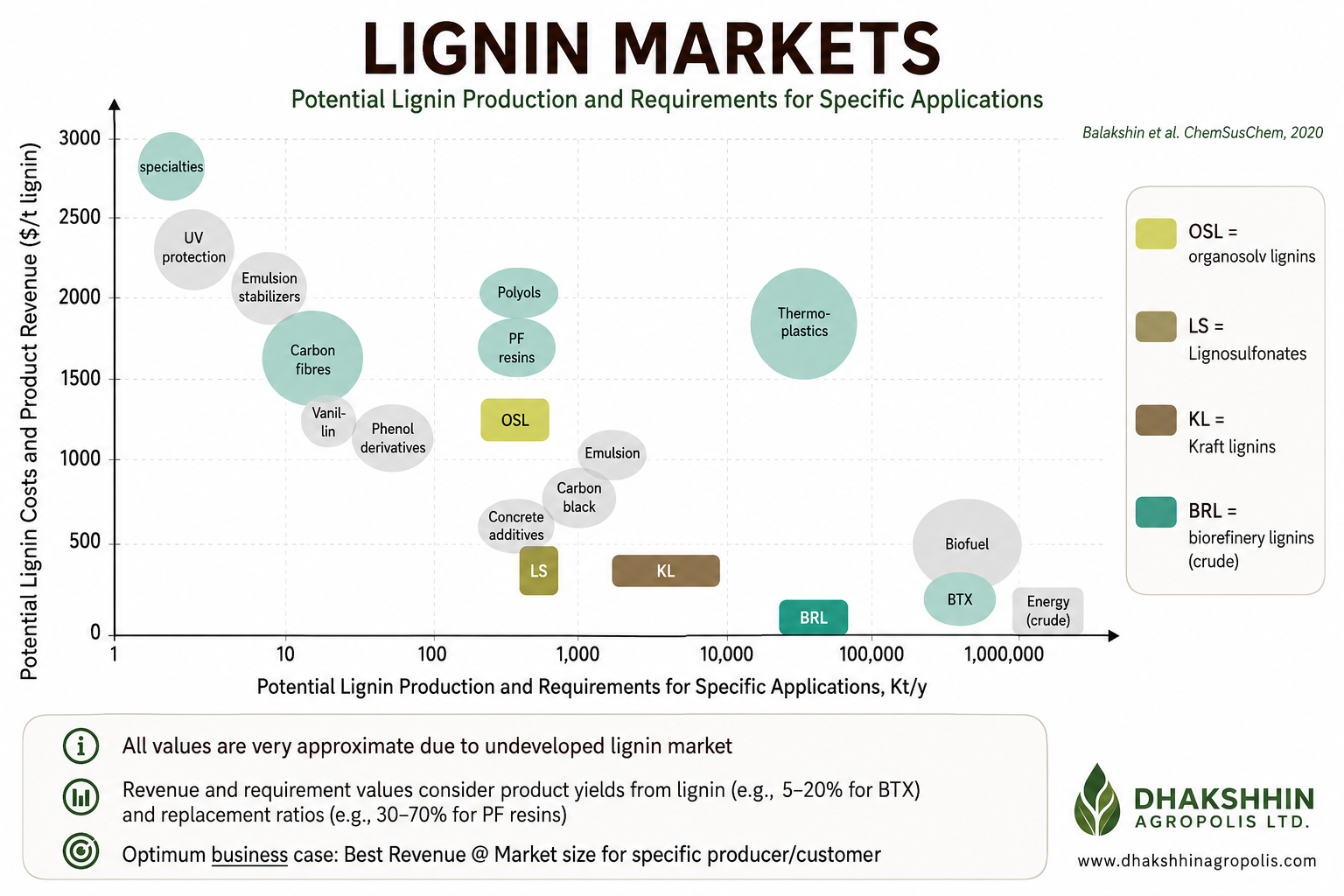

The revenue gradient is brutal: specialties at $2,500–3,000/t, carbon fibre, polyols, PF resins and thermoplastics at $1,500–2,000/t, dispersants and concrete additives at $300–700/t — and crude biorefinery lignin / energy at under $100/t. The optimum business case sits where best revenue meets market size for a specific producer-customer pair.

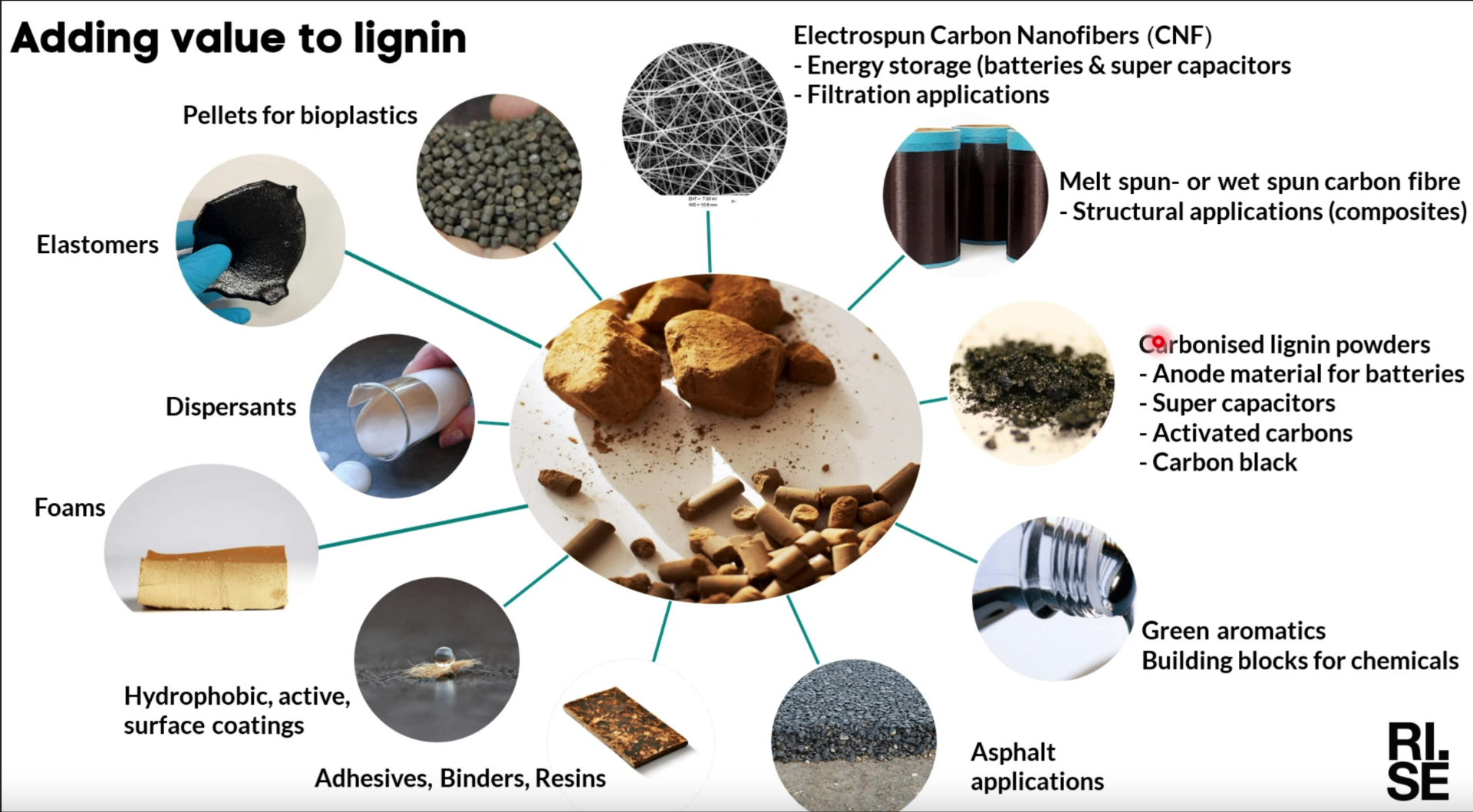

A single tonne of biorefinery lignin can be routed into more than a dozen high-performance applications — each unlocking a different price point and a different customer base.
Drop-in biodegradable polymer pellets for injection moulding and extrusion.
Battery & super-capacitor electrodes, advanced filtration membranes.
Structural composites for automotive, wind, aerospace — at ~50% the cost of PAN.
Anode material for Li-ion batteries, super-capacitors, activated carbons, carbon black.
Tyre fillers and lignin-based rubbers replacing silica/carbon black.
Concrete superplasticisers, oilfield muds, agro-formulation carriers.
Lignin-based polymer & fibre foams — insulation, packaging, cushioning.
Active anti-corrosion and water-repellent coatings for metals and wood.
Drop-in for phenol-formaldehyde plywood, particle-board, PF resin systems.
Lignin-modified bitumen extends pavement life and reduces fossil bitumen demand.
BTX and aromatic building blocks for the chemical industry.
Cosmetic sunscreens, antioxidants, vanillin and high-value fine chemicals.

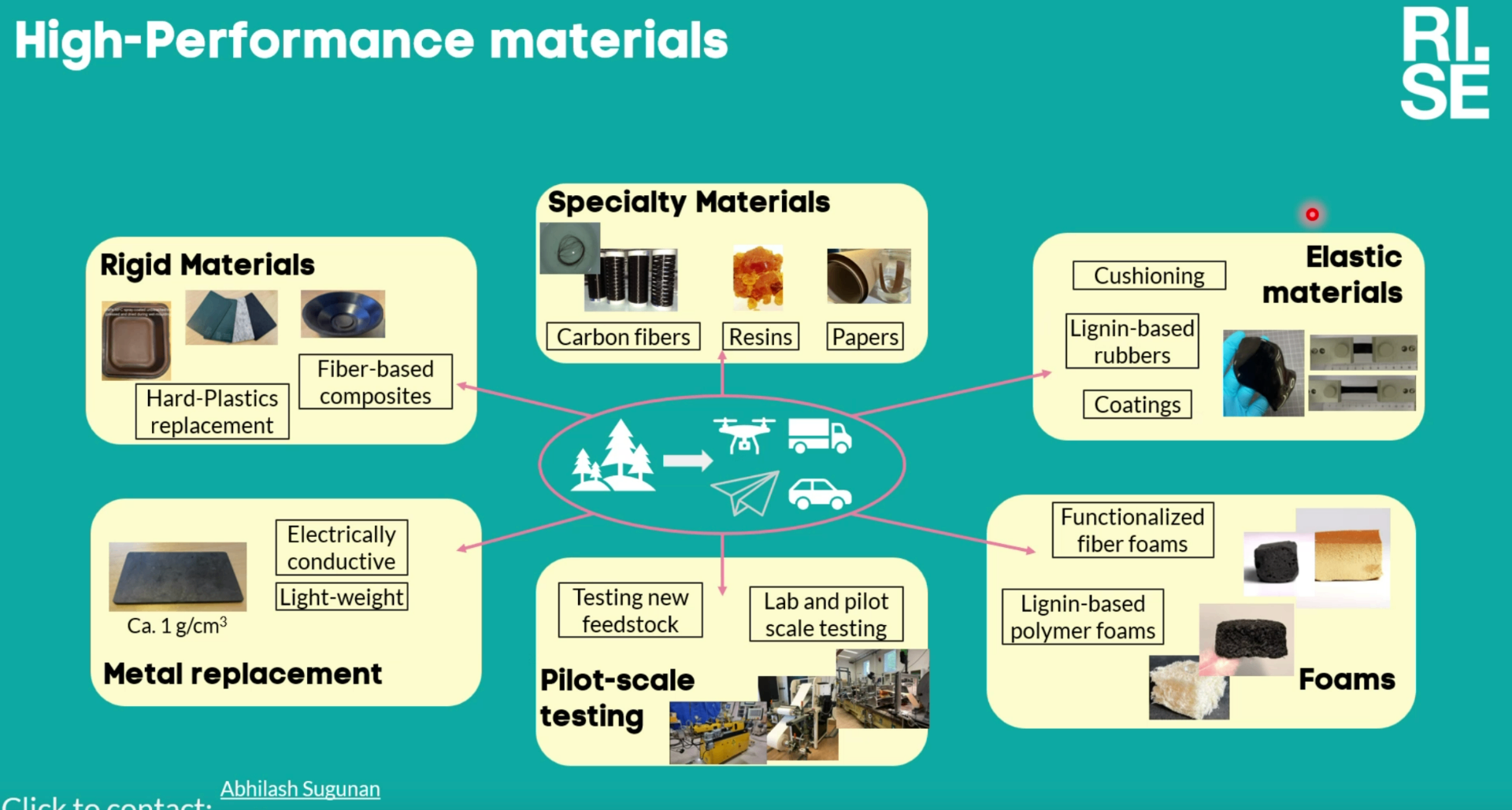

Lignin-derived materials are already being pilot-tested as hard-plastic and metal replacements at ~1 g/cm³, electrically-conductive lightweight panels for automotive and aerospace, lignin-based rubbers, coatings, functionalised fibre foams and polymer foams — alongside specialty carbon fibres, resins and papers.

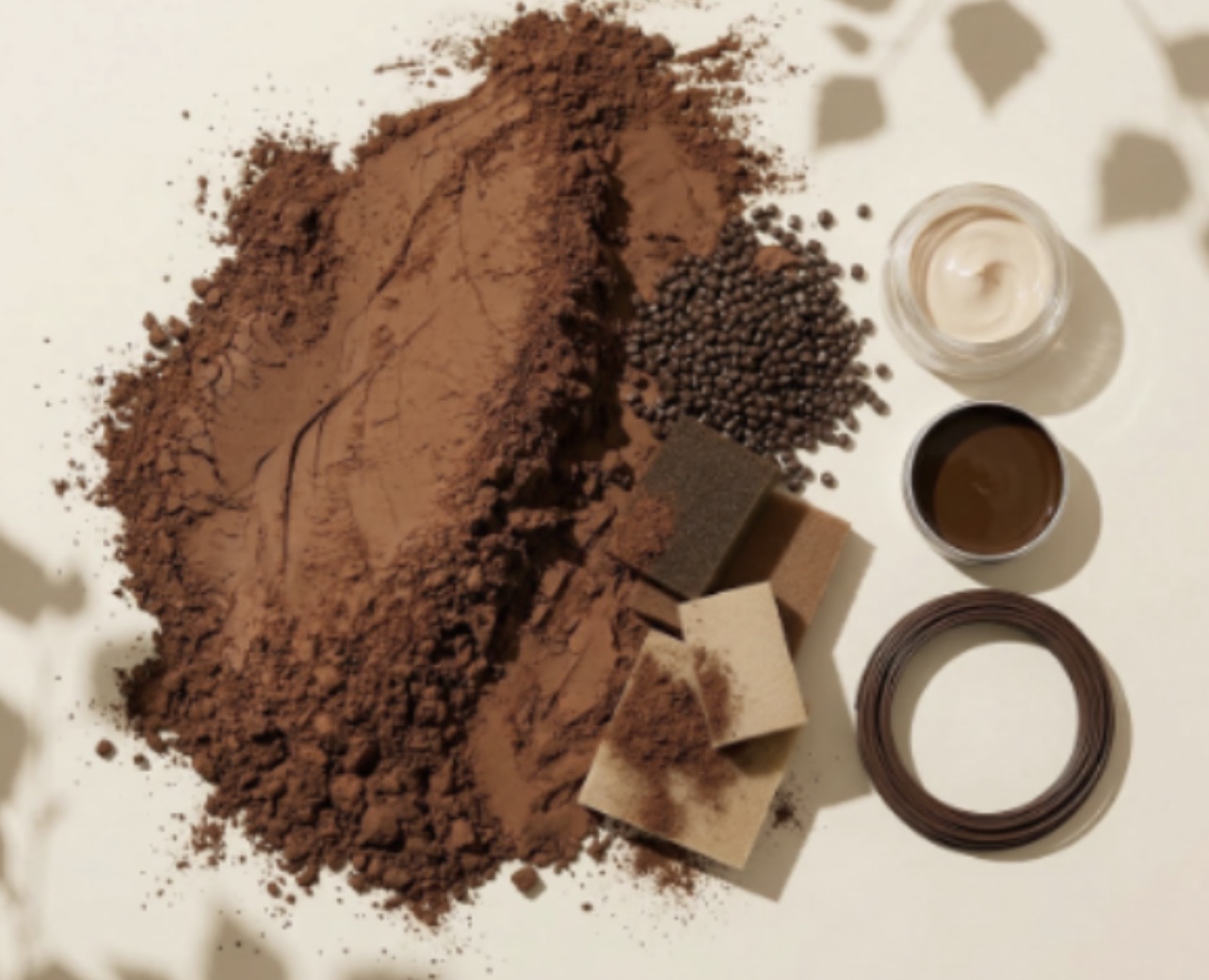

Every form on the right comes from the same lignin stream — fractionated, dried, and routed to a different industry. Agropolis' lignin-first design lets a single 25 km cluster supply cosmetics, construction, automotive, batteries and bioplastics from the same Napier harvest that powers the CBG plant.
